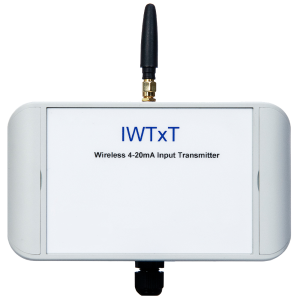

IWTxT Wireless Transmitter with 4-20mA transmitter supply

The IWTxT is designed to convert any standard 4-20 mA transmitter into

a wireless unit.

It works by switching on a supply to the 4-20 mA transmitter, waiting for

a suitable settling time and then sending the data to one of Sensata’s

standard wireless receiver units.

The IWTxT is specially designed to maximise battery life and in a typical

application the battery life will exceed 12 months. The data update rate

is user selectable to suit the requirement of each measured variable and

so maximize battery life.

Typical update rates include 1 second, 10 seconds, 60 seconds or 1 hour.

The system also features a signal strength reading and time since last

transmission which can be remotely monitored.

The IWTxT is designed to operate with the IWR range of receivers.

The IWR-1 can output a 4-20 mA or 1-5V signal whilst the IWR-PORT

can store up to 128 variables for transmission to an industrial Ethernet

connection or an RS-232/485 communications link.

Features:

• Battery powered wireless transmitter

• Supplies excitation voltage to 4-20 mA transmitters

• Long battery life

• Make any transmitter into a wireless transmitter

• Complete thermocouple, RTD, Pressure and Level wireless probes are

available
