IIP-Series Pressure Transmitters

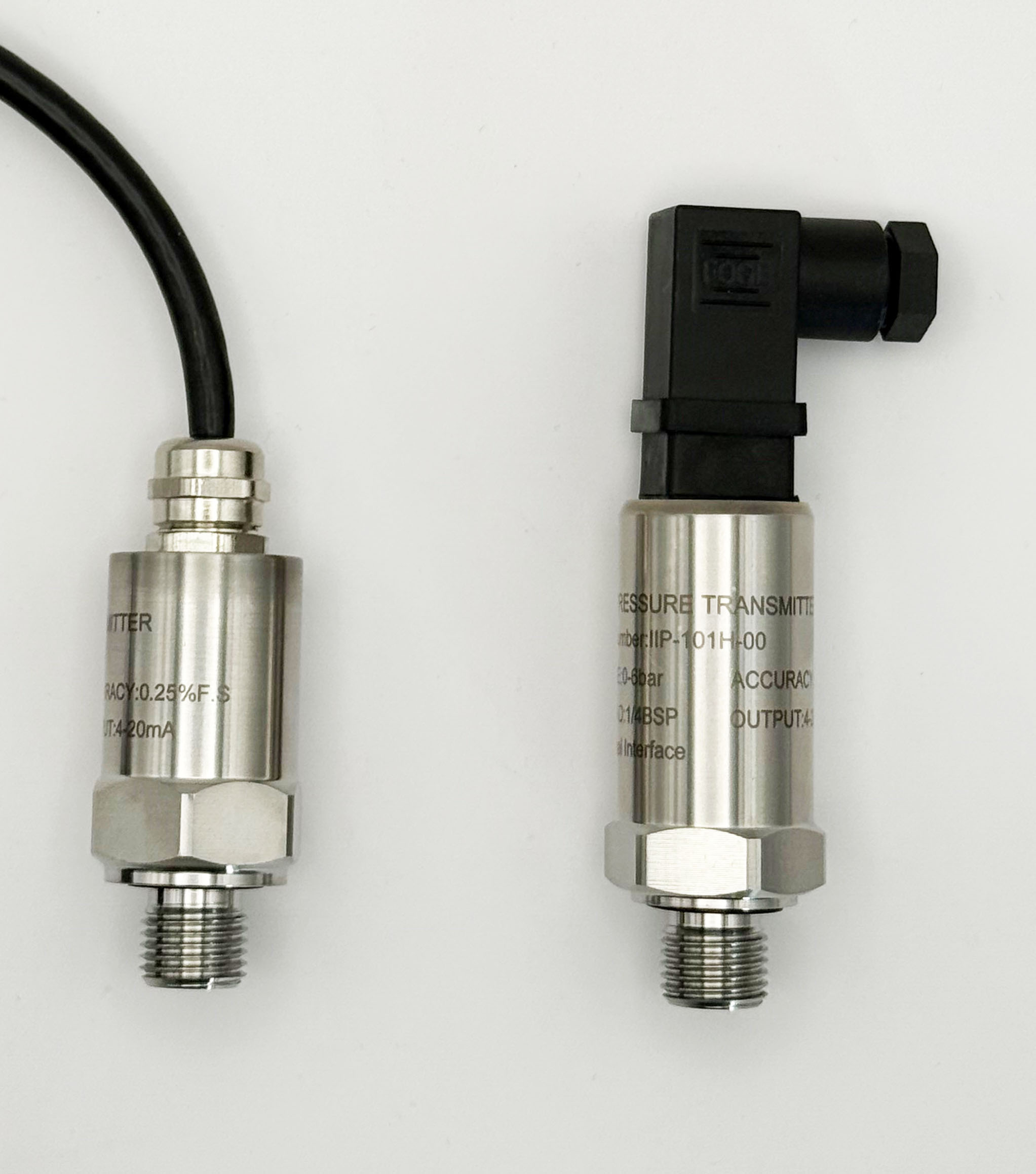

II-P001 Pressure Transmitter

• Accuracy to +/- 0.25% FSO
• Outputs include mA, Volts, mV & RS485
• Range of process & electrical connections
• Compact & Rugged Construction
• Custom Versions Available
• For level transmitters see the IIL range

The IIP Series of Industrial Pressure transmitters are designed to meet the needs of both OEM and end-users in the competitive pressure measurement construction these sensors offer a competitive alternative to established manufacturers.

A range of submersible level transmitters the IIL range is also available.

A wide range of outputs and connections are available and the range includes the following features:

• Measuring ranges from 0.25 to 700 bar g – absolute ranges also available

• 4-20mA, 0.5-4.5V, 0-10V & RS485 output types

• ±0.25% FSO accuracy with long-term stability

• Thermal drift < 0.04% FS/°C

• Temperature compensation built-in

• Stainless steel construction – compact 24mm diameter casing

• Variety of electrical connections including Cable, Hirschmann etc.

• Process connections include ¼” BSP, ¼”NPT etc.

• Silicon diaphragm
